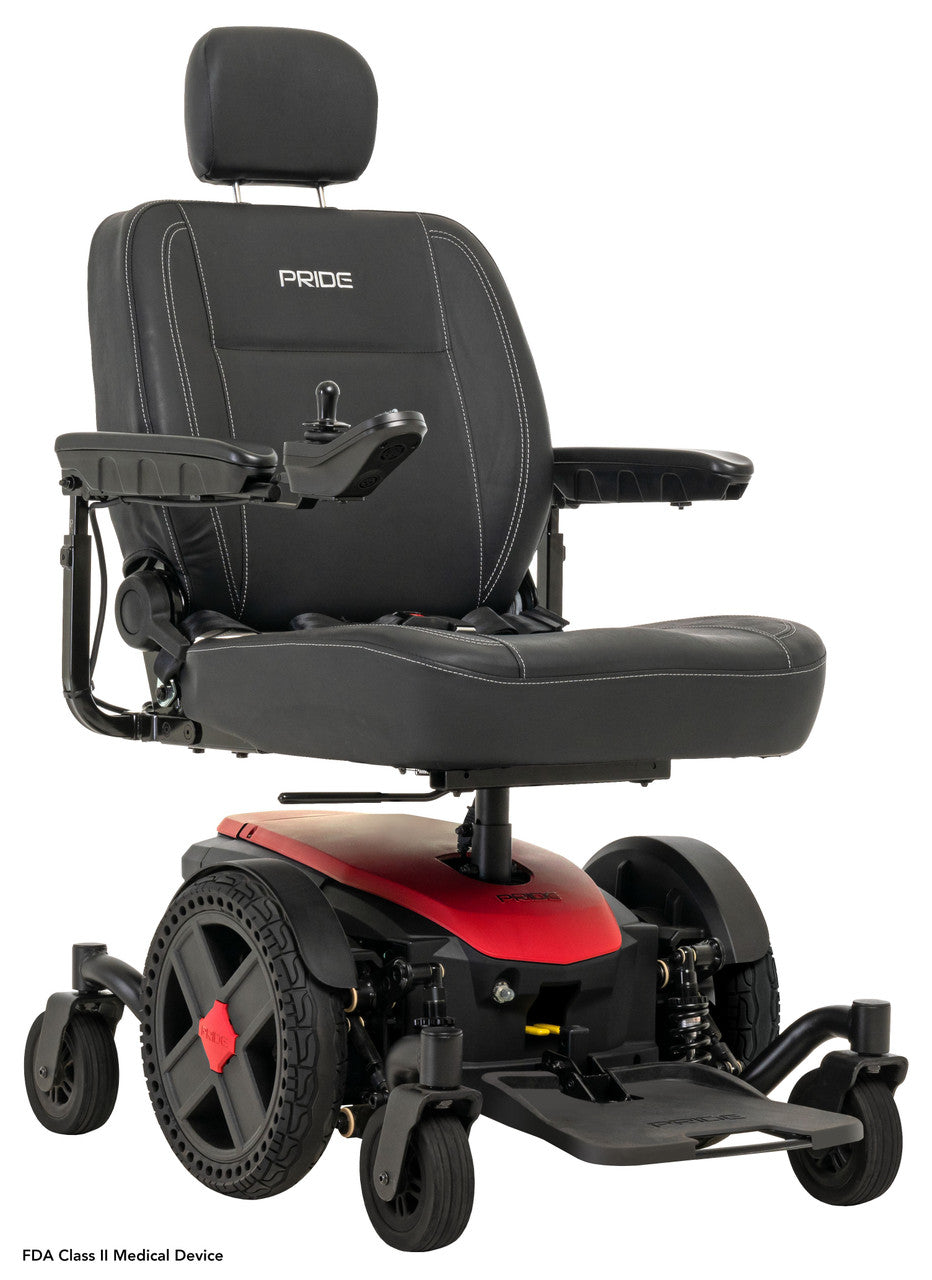

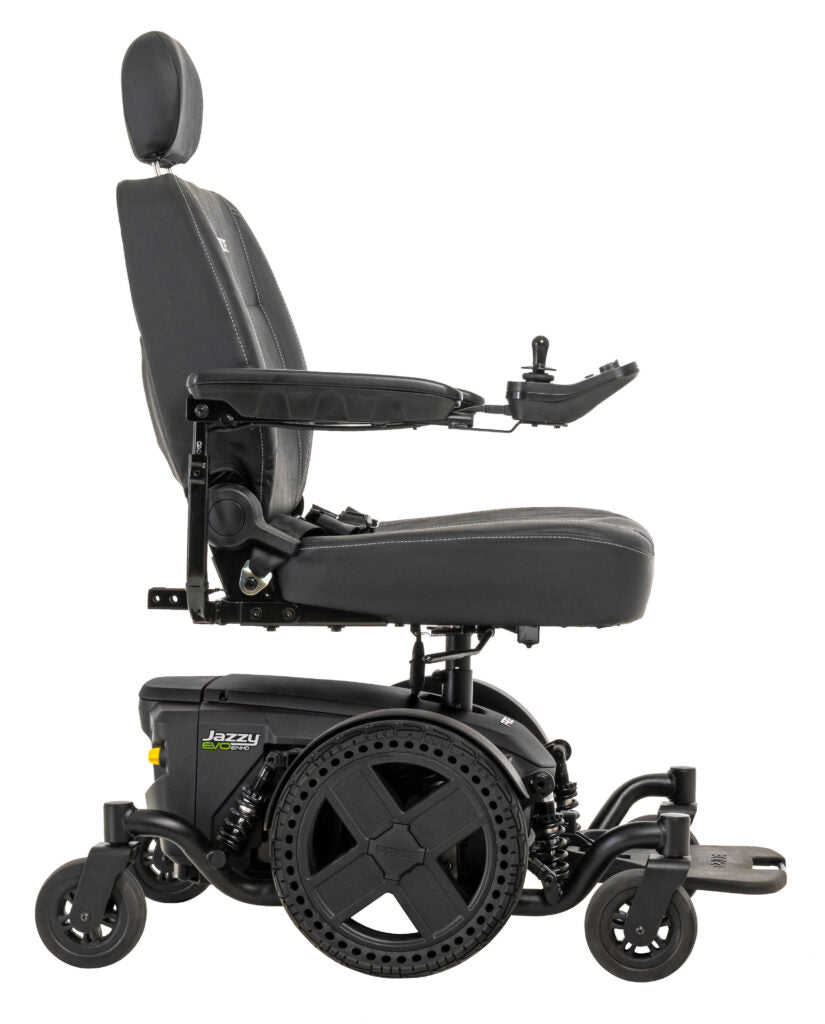

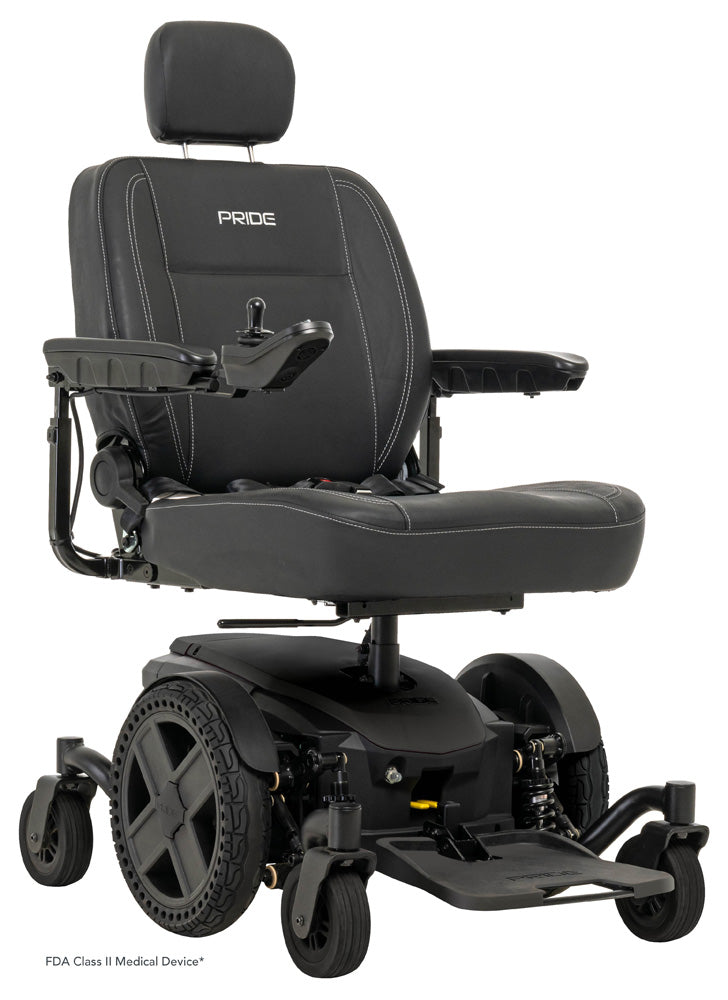

Jazzy EVO 614 HD- Heavy-Duty Performance
Product Overview
The Jazzy® EVO 614HD is designed to offer an unparalleled level of freedom and versatility, empowering users to effortlessly navigate through tight indoor spaces while also conquering outdoor terrains with ease.
The Jazzy® EVO 614HD empowers you to pick up and go. That’s because it comes engineered with the capabilities that push boundaries of everyday life for the heavy-duty power wheelchair class, with a 204 kg weight capacity.
Specifications
| Weight capacity | 204 kg |
| Maximum speed | Up to 7.8 km/h |
| Turning radius | 55.9 cm |
| Per-charge range | Up to 21 km |
| Arm supports | Heavy duty swing posts |
| Suspension | Active-Trac® (ATX) |
| Drive system | Two-motor, in-line HD, mid-wheel drive |
| Manoeuvrability | Freedom to navigate small spaces and tight corners |
| Braking system | Regenerative & electro-mechanical |
| Control mount | Optional swing away |
| Ground clearance | 7.6 cm at mid-frame |
| Length | 101.6 cm |
| Width | 64.5 cm |
| Weight of heaviest piece | 65 kg |
| Seat size (standard) | 50.8 x 50.8 cm (20” x 20”–22”) or 55.8 x 55.8 cm (22” x 20”–22”) |
| Also noted seat size | 18” x 18” |
| Seat weight | 23.5 kg (high-back) |
| Seat-to-floor range | 55.8 cm – 60.9 cm |
| Specialty seating options | N/A |
| Standard electronics | 60A, Dynamic Linx |
| Specialty controls | N/A |

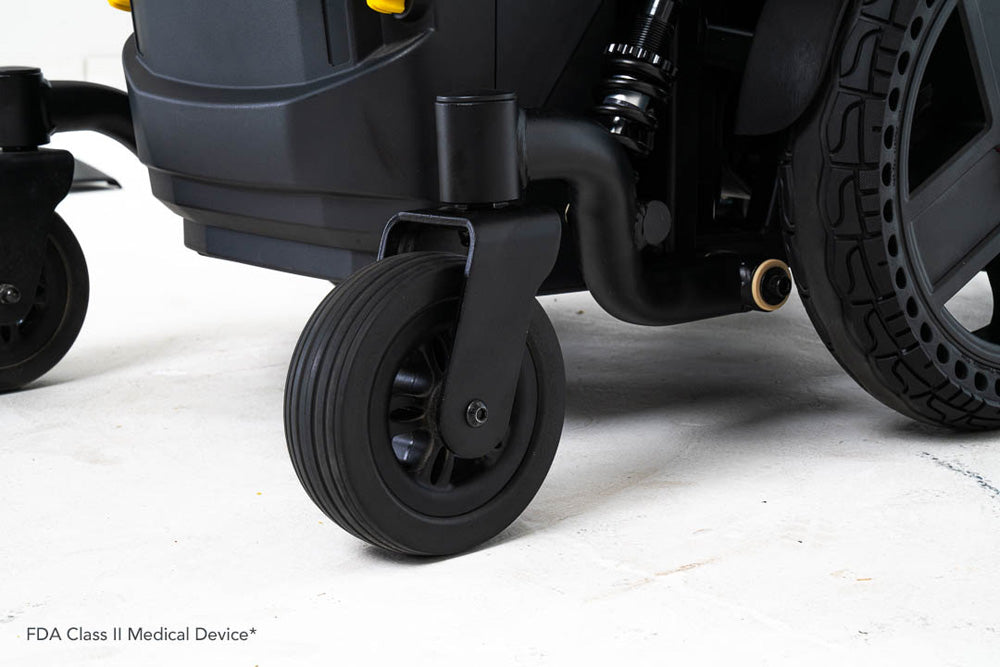

| Front wheels | 6” castors |
| Drive wheels | 13.75” solid |
| Rear wheels | 6” castors |
| Battery requirements | (2) 55AH, 12V |
| Battery charger | Off-board, 5A |
| Battery weight | 16.8 kg each |
| Colour options | Black, Robins Egg Blue, Cardinal Red |
