Product Description

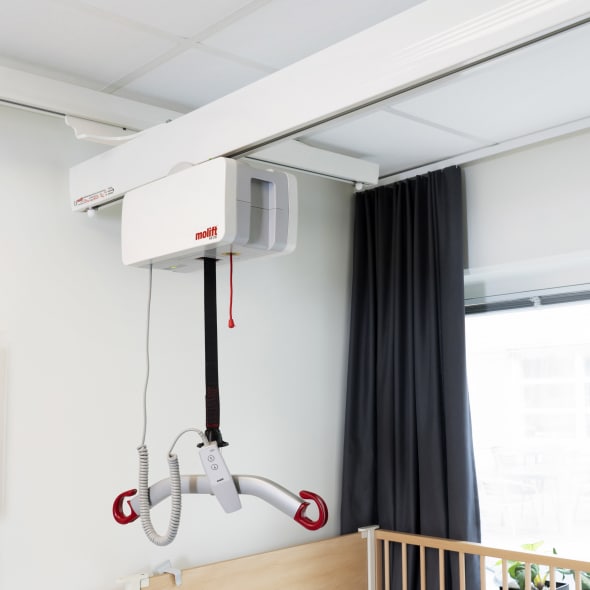

The Molift Air 200 Ceiling Hoist Motor is a compact overhead lifting motor designed to support safe, comfortable and efficient transfers in long-term care, disability support, aged care, rehabilitation and home-care environments. Used as part of a compatible Molift ceiling rail system, it assists with everyday lifting tasks while reducing the need for manual lifting by carers.
The Molift Air 200 supports sitting and horizontal transfers, as well as selected standing and gait-training situations when configured with the appropriate sling bar, sling and rail system. Its compact construction, quiet operation and soft start-and-stop function help create a more comfortable transfer experience for the user.
Designed for efficient installation and servicing, the motor features a quick-release function that allows it to be disconnected from the trolley when required. The intuitive hand control, mechanical and electrical emergency lowering, emergency stop function and automated service notification support safe and practical day-to-day operation.
The Molift Air 200 must be specified, installed and used as part of an appropriate ceiling-hoist system by trained professionals following a person-specific manual-handling assessment.
Key Features
- Compact ceiling hoist motor for everyday lifting and transfer needs.
- Suitable for use with the Molift Rail System and compatible Molift slings.
- Supports sitting and horizontal transfers.
- Suitable for selected standing and gait-training applications with appropriate equipment.
- Helps reduce the need for manual lifting by carers.
- Quiet operation with soft start and stop movement.
- Compact, lightweight motor design for easier installation and servicing.
- Quick-release function allows the motor to be removed from the trolley.
- Intuitive hand control with hanger on the sling bar.
- Optional docking station or wall parking bracket available.
- Mechanical and electrical emergency lowering functions.
- Emergency-stop function can be reset from floor level.
- In-Rail Charging and propulsion options available for selected configurations.
- Molift Service Tool provides automated service notification and maintenance support.
- Suitable for home care, aged care, hospitals, rehabilitation and disability support settings.
Comprehensive Specification Table
| Specification | Details |
|---|---|
| Product Name | Molift Air 200 Ceiling Hoist Motor |
| Brand | Molift by Etac |
| SKU | M26200 |
| Product Type | Ceiling Hoist Motor |
| Primary Function | Powered overhead lifting and transfer support |
| Suitable Transfer Types | Sitting transfers, horizontal transfers, selected standing and gait-training situations |
| System Requirement | Compatible Molift Rail System, sling bar and sling required |
| Safe Working Load / Weight Capacity | 205 kg |
| Unit Weight | 8.6 kg |
| Length | 360 mm |
| Width | 190 mm |
| Height | 195 mm |
| Lifting Strap Length | 3 m |
| Hoisting Interval | 3.0 m |
| Hoisting Speed | 60 mm/sec at 75 kg load |
| Motor Material | Aluminium and plastic |
| Hand Control | Yes |
| Operation | Quiet operation with soft start and stop |
| Quick-Release Function | Yes; allows motor removal from trolley for servicing |
| Emergency Lowering | Mechanical and electrical |
| Emergency Stop | Yes; reset possible from floor level |
| Charging | In-Rail Charging available for compatible configurations |
| Battery Type | NiMH battery |
| Battery Charger | 100–240 V AC, 40–60 Hz |
| Battery Charge Time | Approx. 6 hours |
| Protection Class | IP24 |
| Service Support | Molift Service Tool |
| Expected Service Life | Approx. 30,000 lifts at SWL or 10 years |
| Cleaning | Solvent-free cleaner with pH 5–9 or 70% disinfectant solution |
| Warranty – Ceiling Hoist | 2 years |
| Warranty – Battery | 6 months |
| ARTG Number | 360015 |
| Compliance | AS 10535:2006 |
