Care Quip Allegro Alto Patient Lifter
Product Description

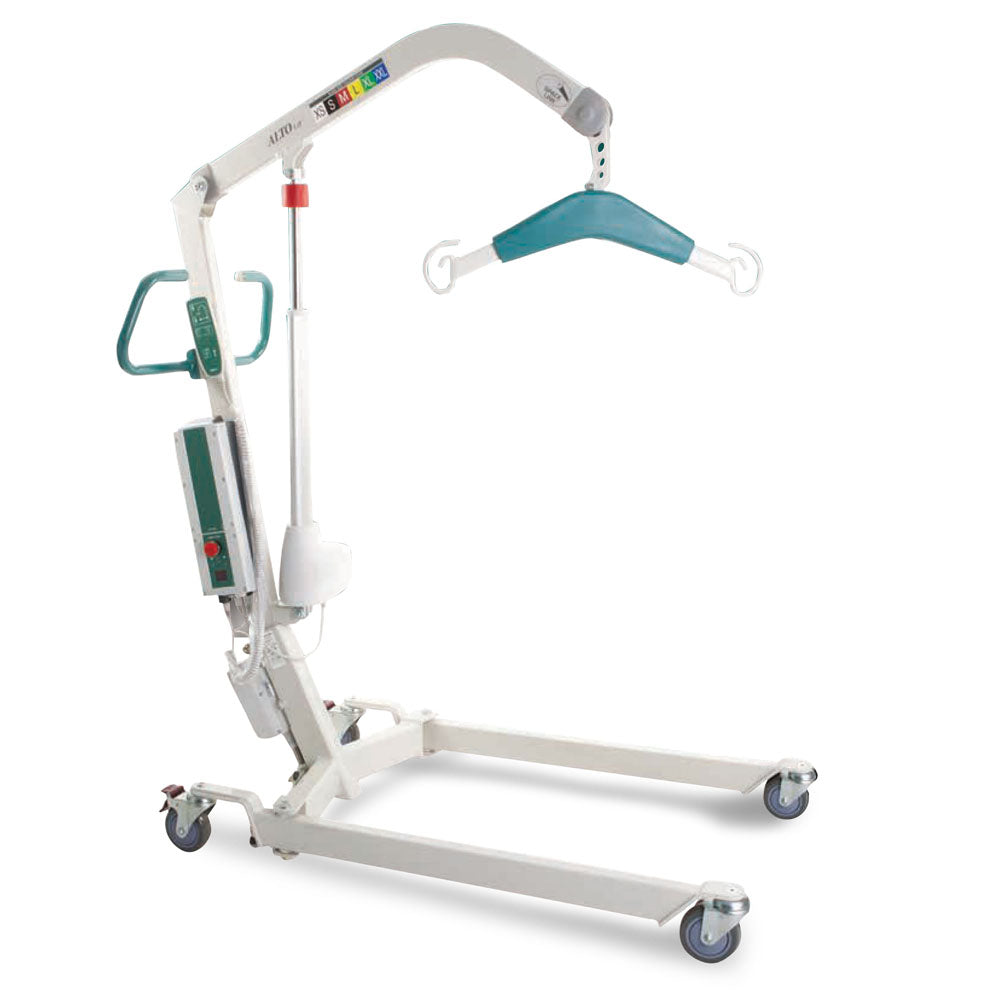

The Care Quip Allegro Alto Patient Lifter is a compact, heavy-duty mobile patient hoist designed to support safe and efficient transfers in hospitals, aged care facilities, rehabilitation centres, and home care environments. With a 200 kg safe working load, it delivers generous lifting space while maintaining a compact footprint for easier manoeuvring around beds, wheelchairs, and furniture.
The Allegro Alto features powered leg-width adjustment, allowing caregivers to open or close the base using the electric controls. Its low under-base height, extended lifting range, and excellent floor-lift capability make it suitable for a wide variety of patient-handling situations.
Allegro’s innovative Space Link® technology provides additional room around the user and supports easier positioning during transfers. The lifter is available in three configurations to suit different clinical and care requirements:

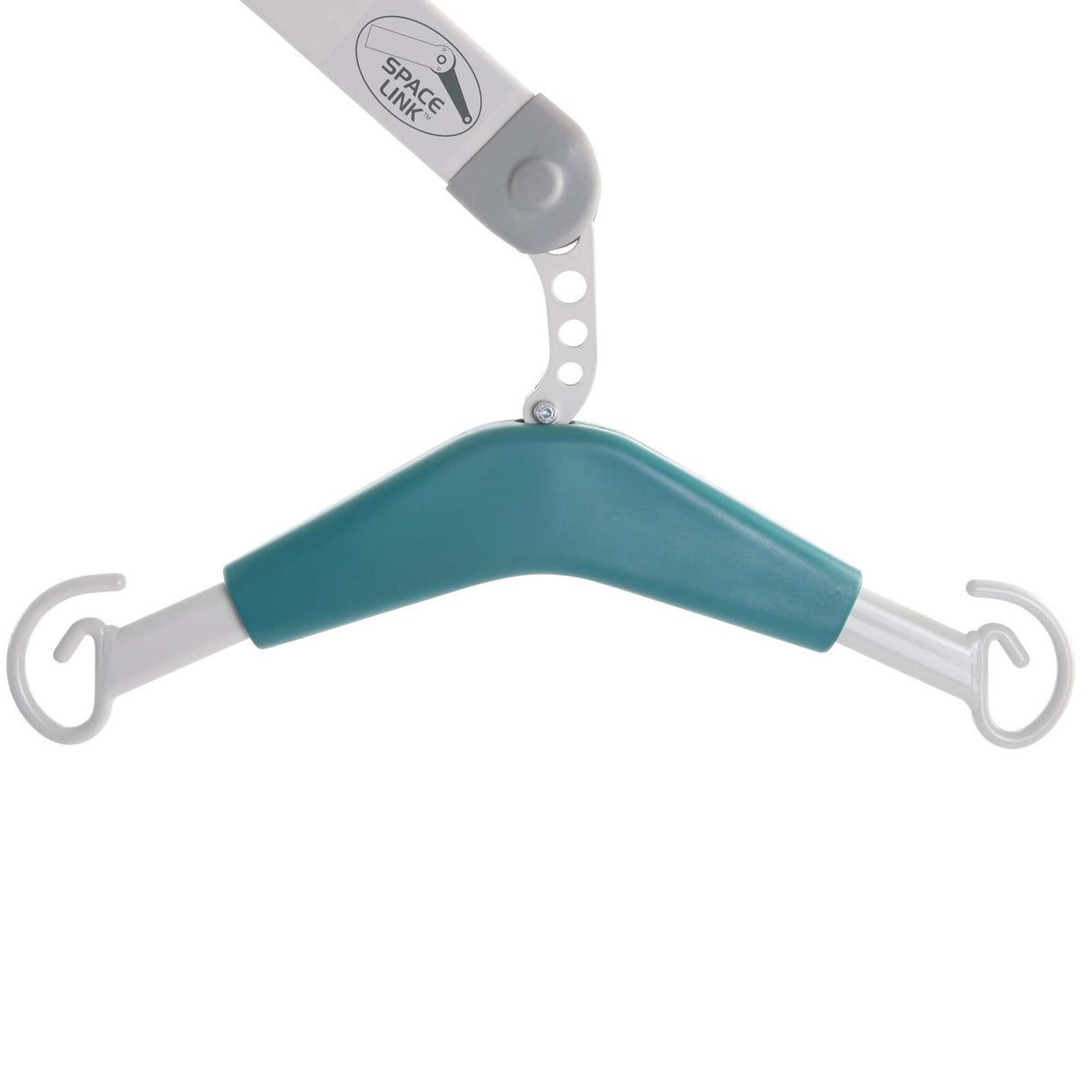

- Standard Yoke Spreader Bar: Supplied with a standard yoke for use with compatible loop-style slings.
- Frame Only: Supplied without a lifting attachment, allowing a compatible yoke or pivot frame to be selected separately.
- Pivot Frame: Supplied with a complete pivot-frame attachment for compatible pivot-frame slings and enhanced positioning support.
Manufactured in Australia and compliant with AS ISO 10535:2002, the Allegro Alto combines robust construction with reliable Linak electric actuators and controls for dependable everyday performance.
Important: The selected lifting attachment must be compatible with the user’s sling. Sling sold separately.
Key Features
- Heavy-duty mobile patient lifter
- Safe working load of 200 kg
- Three configuration options
- Powered leg-width adjustment
- Compact design for home and institutional care
- Space Link® technology provides generous patient space
- Excellent floor-lift capability
- Low under-base height for improved bed access
- Wide lifting range for varied transfer situations

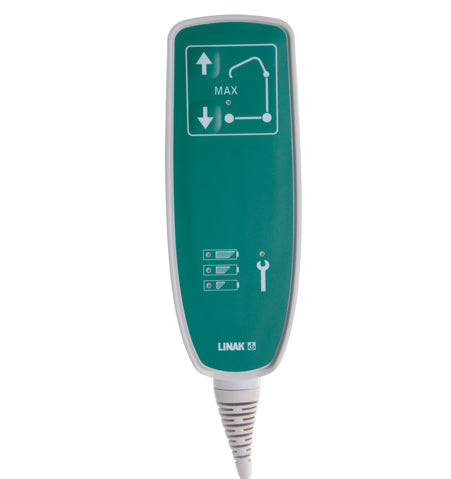

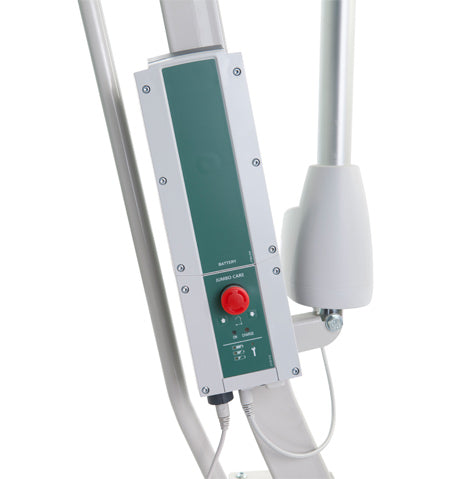

- Linak electric actuator and control system
- Durable powder-coated steel construction
- Manufactured in Australia
- Complies with AS ISO 10535:2002
Configuration Options
| Configuration | Included Attachment | Recommended Use |
|---|---|---|
| Standard Yoke Spreader Bar | Standard yoke spreader bar | Compatible loop-style slings and general patient transfers |
| Frame Only | No lifting attachment | For customers selecting a compatible attachment separately |
| Pivot Frame | Complete pivot-frame attachment | Compatible pivot-frame slings and enhanced positioning support |
Specification Table
| Specification | Details |
| Safe Working Load | 200 kg |
| Base Length | 1150 mm |
| External Base Width, Closed/Open | 700 / 1130 mm |
| Internal Base Width, Closed/Open | 600 / 1030 mm |
| Under-Bed Clearance | 130 mm |
| Minimum Lifting Attachment Height | 300 mm |
| Maximum Lifting Attachment Height | 1920 mm |
| Under-Base Height | 55 mm |
| Maximum Hoist Reach | 1060 mm |
| Minimum Hoist Reach | 610 mm |
| Hoist Reach at Maximum Height | 515 mm |
| Lifter Weight | 46 kg |
| Minimum Storage Height | 1350 mm |
Additional Specifications
| Specification | Details |
| Base Adjustment | Electric |
| Patient Positioning | Space Link® Technology |
| Frame Material | Powder-Coated Steel |
| Actuator and Controls | Linak Electric System |
| Available Configurations | Standard Yoke Spreader Bar, Frame Only or Pivot Frame |
| Compliance | AS ISO 10535:2002 |
| Country of Manufacture | Australia |
| Sling | Sold Separately |
