Kinetec Spectra
Product Overview

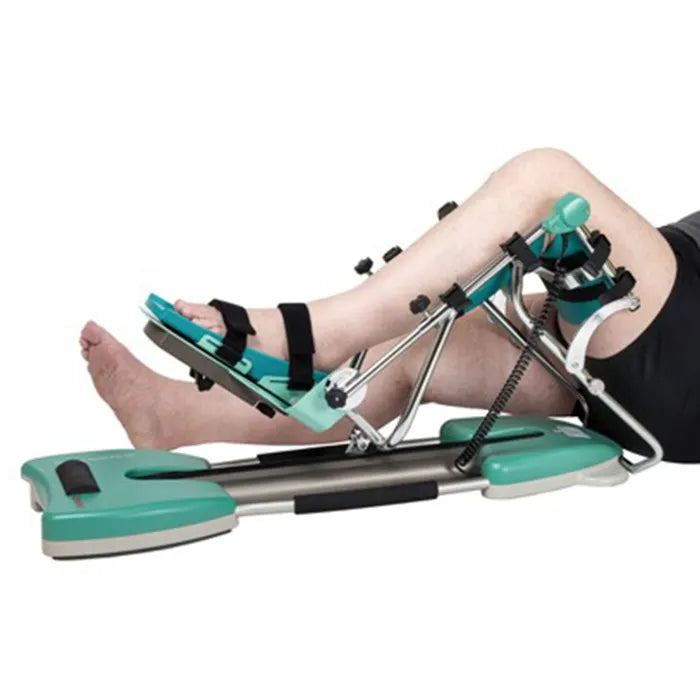

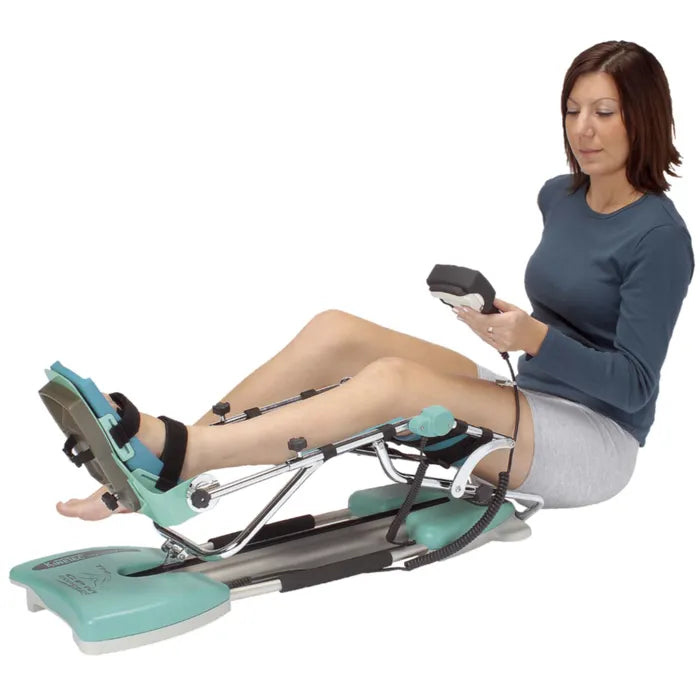

Spectra
Remarkable design
Its arrow shape design and structure is remarkably lightweight and compact facilitating set ups in hospital beds or at patients’ homes as well as easing its storage. The two padded side handles make the unit comfortable to carry.
Patient feedback & unique features
The digital remote control provides a precise yet clear feedback to the patient as well as it helps the therapy with unique functions such as warm-up or by-pass.
KINETEC DATA CAPTURE™ USB technology ready
The KINETEC SPECTRA™ remote control is also equipped with the latest USB technology enabling the use of the KINETEC DATA CAPTURE™ software and patient USBs to track
patient progress as well as pre-program the entire patient reha bilitation protocol.
Weight: 12kg (26 pounds)
Splint Dimensions: 95 cm (37 in) x 33 cm (13 in) x 33cm (13 in)
Angular limits: -10 - 120°
Speed: 40 - 145° per minute
Patient Height: 1.45 m (4' 9") - 1.95 m (6' 4")
Patient measurements:Full Leg: 71cm - 99cm (28” to 39”)
Tibia: 38 - 53cm (15” to 21”)
Femur: 33 - 46cm (13” to 18”)
Patient measurements with paediatric footplate option: Full Leg: 53cm - 109cm (21” to 43”)
Tibia: 20cm - 56cm (8” to 22”)
Maximum User Weight: 135kg (298 pounds)
Power Supply: 100-240 V~
Frequency: 50-60Hz
Power Consumption: 20W
Device of type B Class 1
IP 20
Storage/Transport Conditions Temperature: -40 - 70°C / -40 - 160°F
Relative Humidity: up to 90%
Operating Conditions:Room Temperature: 10 - 40°C (50 - 105°F)
Relative Humidity: up to 80%
Warranty: 2 Years
Spectra Essential
Intuitive remote control
The refined remote control design provides an immediate and intuitive control by the user in hospitals or at home helping to focus on the therapy.
Main functions featured
Range of motion, speed and pauses are all adjustable in the hand of the user.
Safety first
The remote control features a keyboard locking system preventing misuse and enhancing
patient safety.
Evolution compliant
The KINETEC SPECTRA ESSENTIAL™ can be upgraded to the latest Data Capture USB technology by replacing its remote control only (option).
Weight: 12kg (26 pounds)
Splint Dimensions: 95 cm (37 in) x 33 cm (13 in) x 33cm (13 in)
Angular Limits: -10 - 120°
Speed: 40 - 145° per minute.
Patient Height: 1.45 m (4' 9") - 1.95 m (6' 4")
Patient Measurements: Full Leg: 71cm - 99cm (30” - 39”)
Tibia: 38 - 53cm (15” - 21”)
Femur: 33 - 46cm (13” - 18”)
With Paediatric Footplate Option:Full leg: 53cm - 109cm (21” - 43”)
Tibia: 20 - 56cm (8” - 22”)
Maximum User Weight: 135kg (298 pounds)
Power Supply: 100-240 V~
Frequency: 50-60Hz
Power Consumption: 20W
Device of type B Class 1
IP 20
Storage/Transport Conditions:Temperature: -40 - 70°C / -40 - 160°F
Relative Humidity: up to 90%
Operating ConditionsRoom Temperature: 10 - 40°C (50 - 105°F)
Relative Humidity: up to 80%
Warranty: 2 Years
Spectra XL Bariatric
32cm (12.5 inch) wide carriage
The KINETEC PRIMA XL™ benefits from the same great specifications as the KINETEC PRIMA ADVANCE™ but features a wider and even stronger carriage to treat bariatric
patients.
227kg (500lbs) body weight load rating
The device also comes with a specifically designed motor enabling exercise on heavier loads in a safe environment.
Great range of motion
Its wide range of motion going from -5° of hyperextension to 115° of flexion enables treatment of most knee & hip pathologies.
