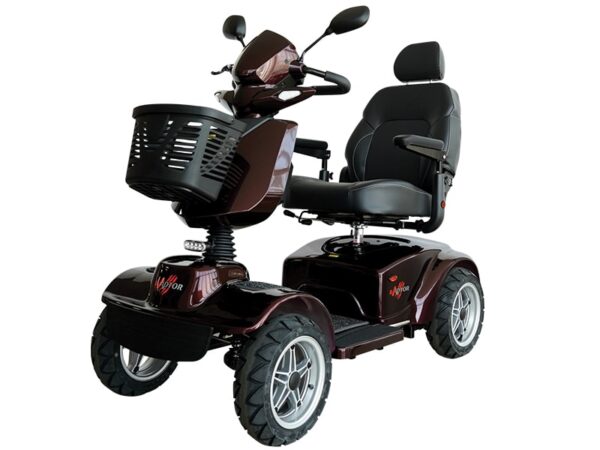

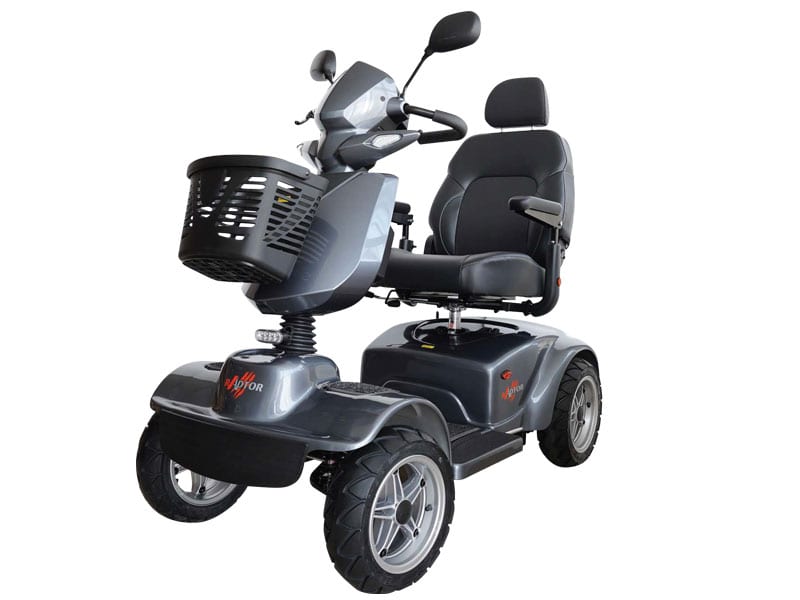

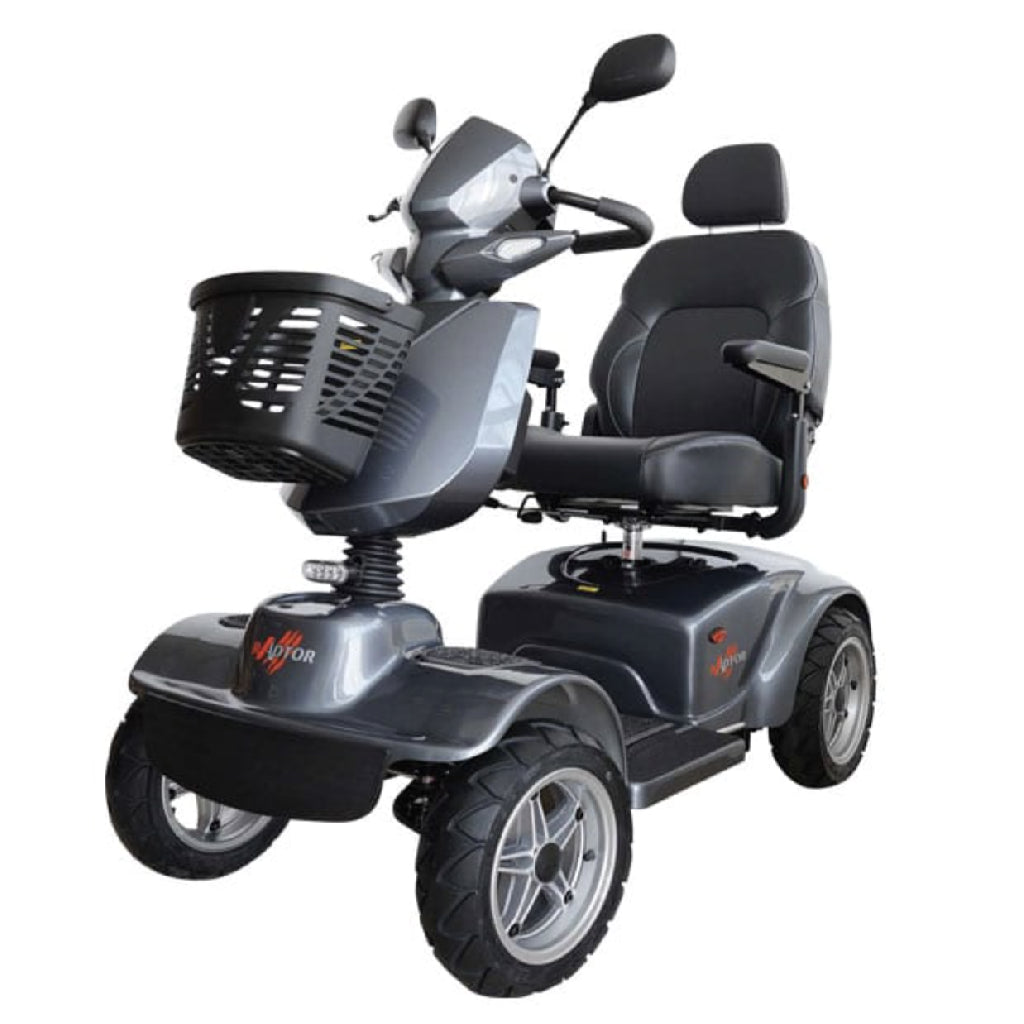

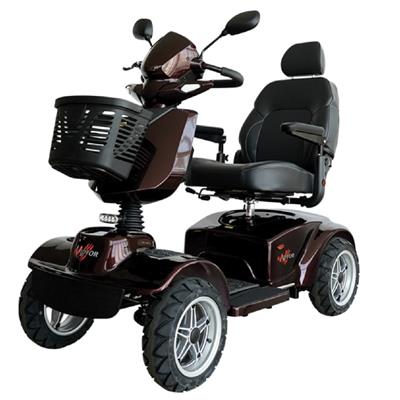

The Merits Raptor Scooter is a robust and stylish mobility solution designed to offer freedom and independence to individuals with mobility challenges. Equipped with modern features and advanced technology, this scooter is ideal for those seeking a reliable and powerful vehicle for outdoor use. It enhances mobility by enabling users to travel longer distances comfortably and safely.
Features
Powerful Performance: Features a 4 pole motor with large controller, delivering enhanced power for climbing steep driveways and hills.
Safety and Control: Equipped with a full suspension system and shock absorbers that provide a smooth and comfortable ride even on uneven terrain.
Comfortable Seating: Offers a new and improved wide seat, fully adjustable with a leather-feel for maximum rider comfort.
Large Wheels: Comes with large 14” wheels that enhance ground clearance, making it suitable for various outdoor conditions.
Modern Amenities: Includes modern LED lighting and a digital LCD dashboard display which shows time, battery status, temperature, maintenance messages, speed, and odometer.
Extra Storage: Features extra storage space beneath the tiller and an easy-to-access 12-volt socket usable for phone or GPS charging.
Colour Options: Available in Charcoal and Tuscan red, allowing users to choose according to their style preferences.
Specifications
Feature
Specification
Full suspension system with shock absorbers
Delivers a smooth, comfortable ride
Large 14″ wheels
Provide greater ground clearance
Modern LED lighting system
Delivers a brilliant light with less power consumption
Digital LCD dashboard display
Time display, battery gauge, temperature, maintenance messages, speed display, odometer
Half speed safety switch
Operates automatically when turning for extra safety
Merits 4PT (4 pole technology)
Large controller & motor for climbing steep driveways and hills
Technical Specifications
Specification
Value
Max Speed
10kph
Range
40-50km
Turn Radius
167cm
Ground clearance
10cm
Motor
DC 24V, 650W (Rating) / 2200W (Max)
Controller
Rhino 160A
Battery
12V / 60-80A/H x 2pcs
Charger
6A off-board
Gradient
8°
Front Wheel
14″ pneumatic
Rear Wheel
14″ pneumatic
Brake
Intelligent, regenerative, electromagnetic
Weight Specifications
Component
Weight (kg)
Base
81
Battery (each)
25
Seat
19
Total with battery
150
Capacity
227
Dimensions Specifications
Component
Dimension (cm)
Overall (A x B x C)
152 x 71 x 135
Seat (D x E x F)
56 x 50 x 56
Seat (Wide) (D x E x F)
80 x 46 x 51
Seat Height from Ground (G)
56-64
Seat Height from Deck (H)
40-48
Wheelbase (I)
104
The Merits Raptor Scooter combines durability, safety, and advanced technology to provide a superior mobility experience, suitable for a wide range of environments and user needs. This scooter is perfect for individuals who require a dependable mode of transportation that can handle both urban and rural landscapes efficiently.
