Molift Duo Gantry Frame
Product Description

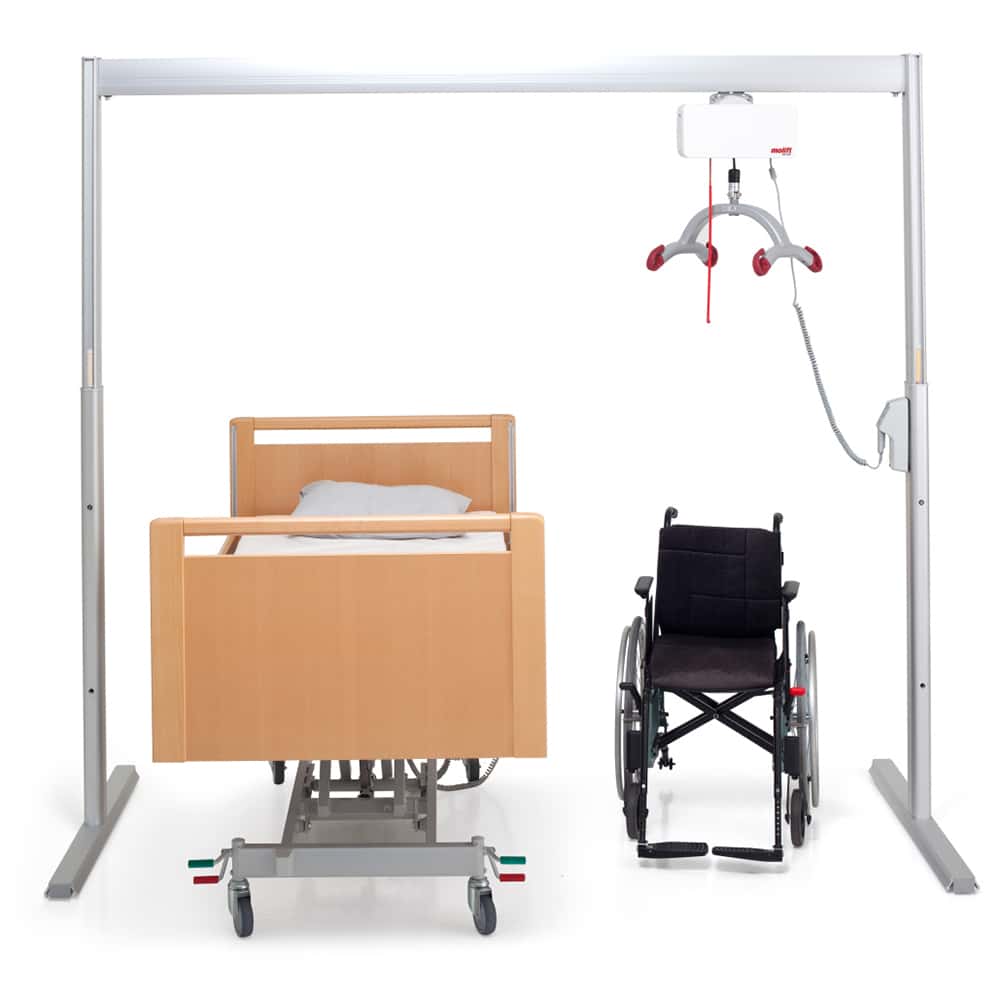

The Molift Duo Gantry Frame is a free-standing overhead hoist rail system designed for environments where a permanently installed ceiling rail is not suitable. It provides the functionality of an overhead lifting rail without requiring fixtures or structural modifications to the building.
The frame is ideal for rental properties, temporary care settings, changing care needs or premises where a conventional ceiling-hoist installation is not possible. Its lightweight aluminium construction allows the gantry to be assembled, adjusted and relocated as required.

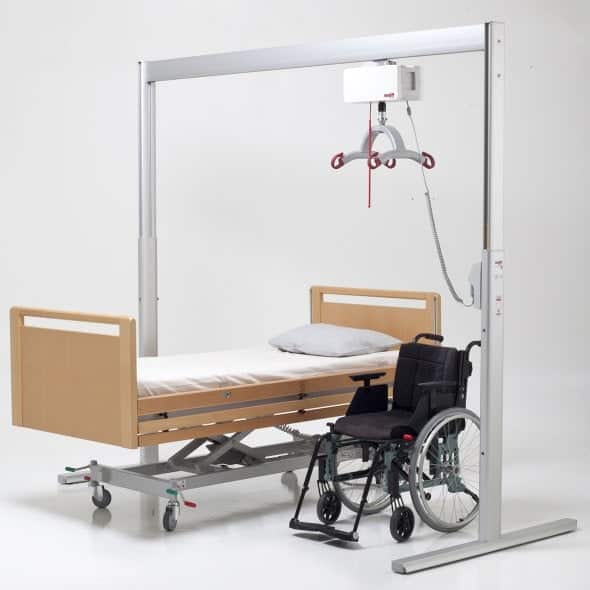

The Molift Duo Gantry Frame is compatible with Molift Air and Molift Nomad ceiling-hoist motors, creating a flexible overhead lifting solution for transfers between beds, chairs, wheelchairs, commodes and other appropriate surfaces when used with compatible equipment.
Available in four internal rail lengths, the system can be selected according to the required transfer area and room dimensions. The height-adjustable frame supports practical setup across a range of care environments.
Key Features
- Free-standing gantry frame for overhead patient lifting.
- Provides overhead rail functionality without permanent building fixtures.
- Suitable for rental homes and locations unsuitable for installed ceiling rails.
- Compatible with Molift Air and Molift Nomad ceiling-hoist motors.
- Supports up to 300 kg when used as part of a compatible lifting system.
- Available in four internal rail lengths from 2.0 m to 3.5 m.

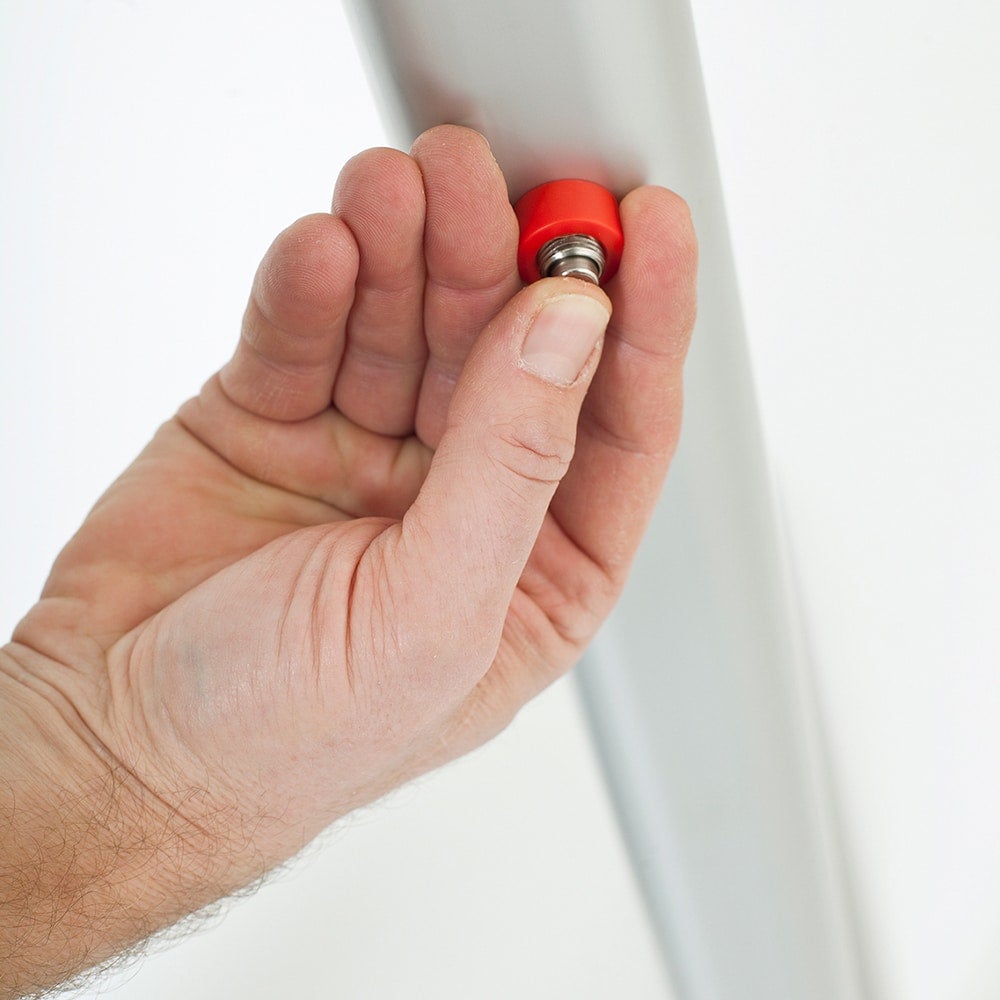

- Height-adjustable design supports installation in different environments.
- Lightweight anodised aluminium construction.
- Designed for relocation when care requirements or locations change.
- Stable, functional design for regular patient-handling use.
- Suitable for home care, aged care, disability support, rehabilitation and clinical environments.
- Ceiling-hoist motor, trolley, sling bar and lifting sling are ordered separately.
Comprehensive Specification Table
| Specification | Details |
|---|---|
| Product Name | Molift Duo Gantry Frame |
| Brand | Molift by Etac |
| Parent Supplier Code | 160001 |
| Product Type | Free-Standing Ceiling Hoist Gantry Frame |
| Primary Function | Provides a free-standing overhead rail for compatible patient lifting systems |
| Compatible Hoist Motors | Molift Air and Molift Nomad ceiling-hoist motors |
| Rail Installation | Free-standing; no permanent fixtures to the existing building structure required |
| Safe Working Load | 300 kg |
| Height Adjustment Range | 2,250–2,550 mm |
| Depth | 1,200 mm |
| Transport Height | 1,700 mm |
| Material | Anodised aluminium and plastic |
| Cleaning | Solvent-free cleaner with pH 5–9 or 70% disinfectant solution |
| Warranty | 2 years |
| Expected Service Life | 10 years |
| ARTG Number | 360015 |
| Australian Standard | AS 10535:2006 |
