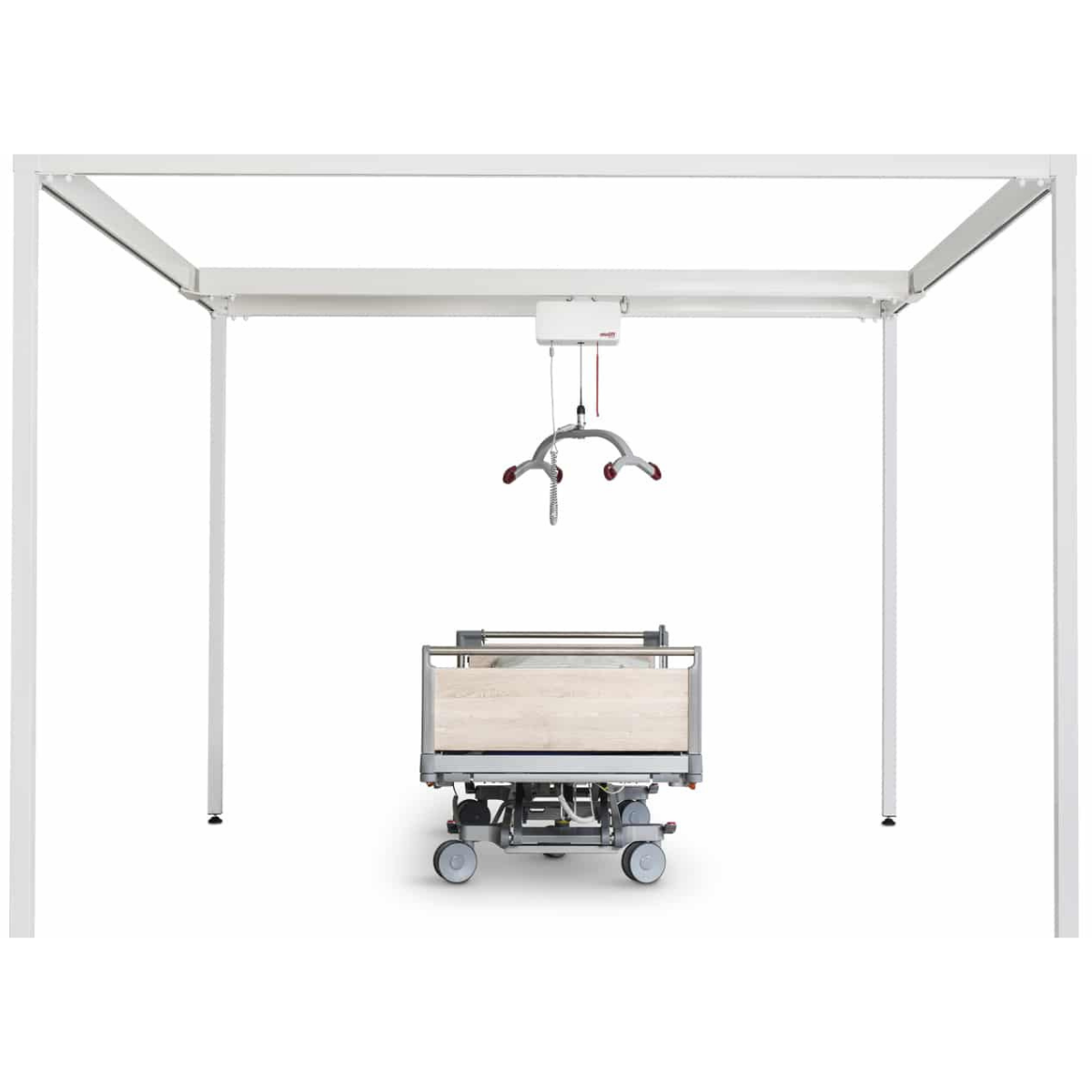

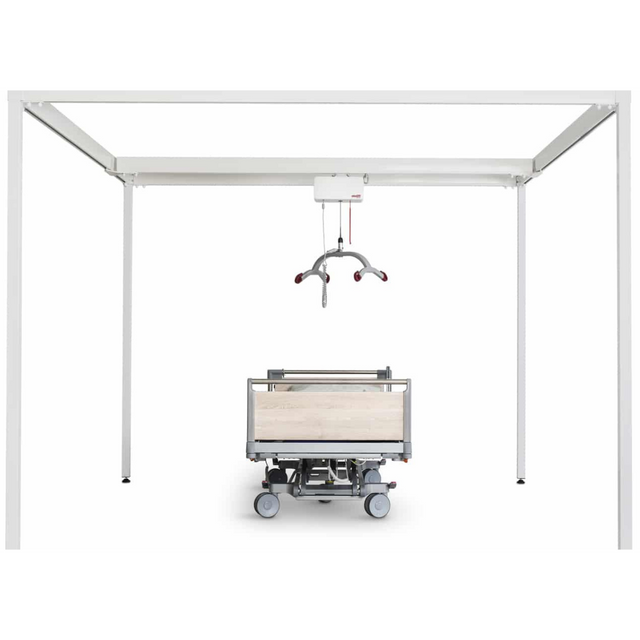

The Quattro gantry can be installed easily without any requirement for mounting additional fixtures to walls or ceilings. It is designed to be installed quickly and efficiently with one or two people. The Molift Quattro Gantry Frame is ideally suited to temporary hoist applications, usually within the hospital or aged care environment. The traverse system consists of an aluminium frame and four steel posts which provide excellent stability and cover the surface of the hoisting requirement, providing access in all lifting situations. Combined with the Molift Air or Molift Nomad and fitted with a sling, the Quattro solves all overhead lifting situations.

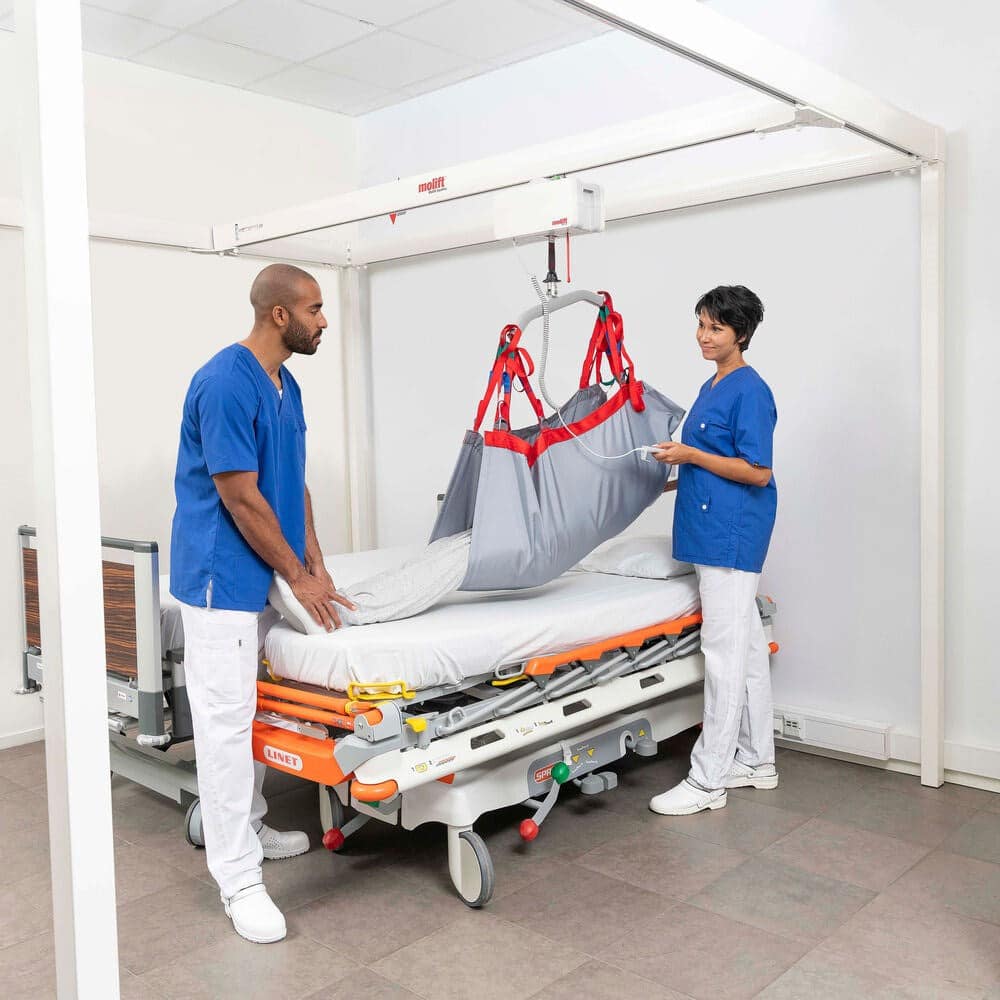

Lifting and Transferring from or to bed, floor, chair, wheelchair, toilet etc., are all possible with this system. Available in two sizes: 3m x 3m or 4m x 4m. Please make a selection from the drop down menu when making an enquiry. Due to the complex nature of this product, we have trained professionals who can provide assistance to ensure this equipment supports your needs. Please get in touch with us, and we will put you in direct contact with a product specialist in your area.
Key Features
Versatile Solution:Freestanding traverse gantry designed for temporary hoist applications, offering flexibility and ease of setup.
Quick Installation:Without the need for additional fixtures to walls or ceilings, ensuring convenience and efficiency.
Robust Construction:Constructed with a sturdy aluminium frame and four steel posts, providing stability and durability during transfers.
Versatile Sizing: Available in two sizing options to accommodate different spatial requirements and user needs.
Height Adjustable Foot: Height adjustable foot sold separately (SKU 1610200), allowing for customisation and adaptability to various environments.
Specifications

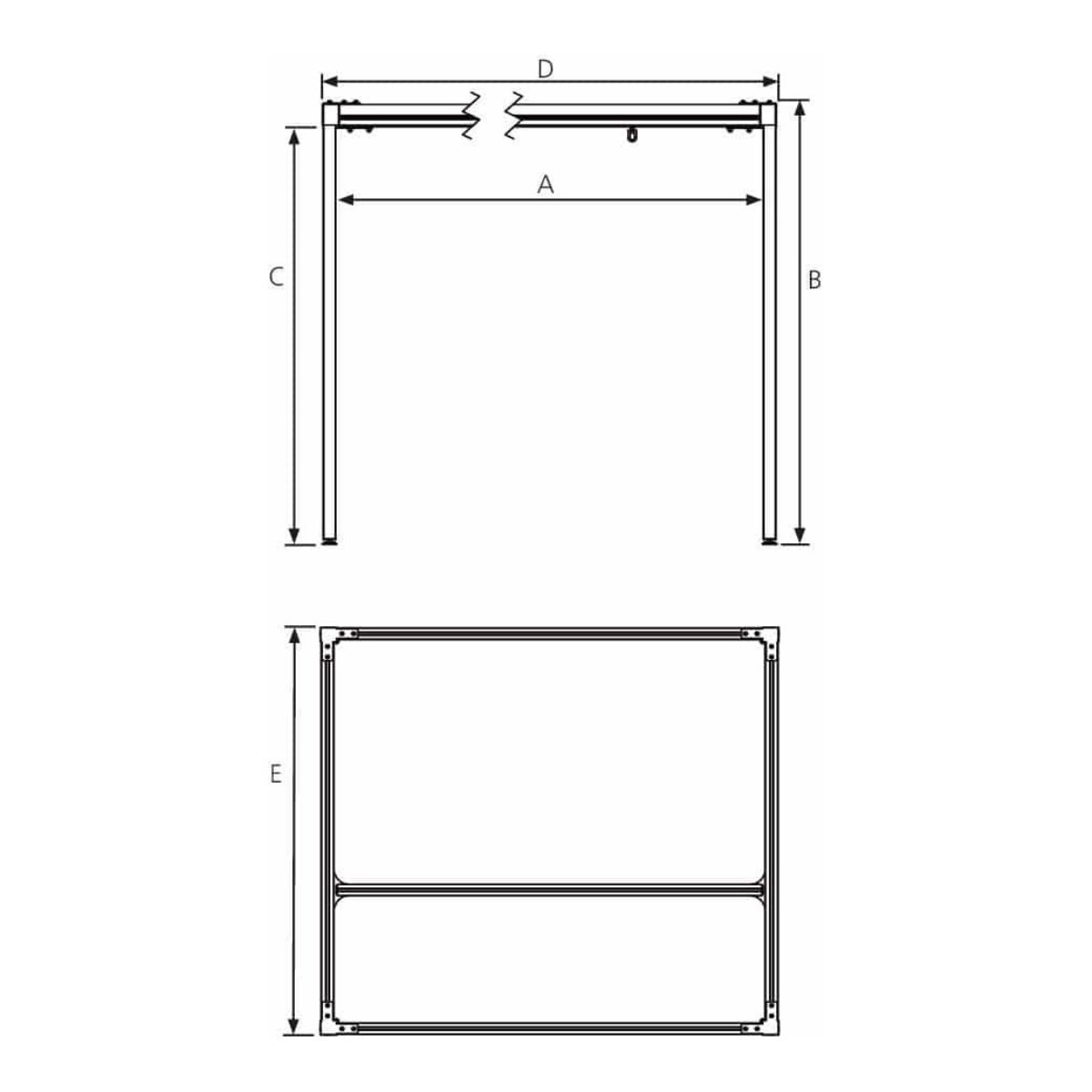

Dimensions
Height: 2330 mm
External height with adjustable feet: 2290 mm (accessory sold separately)
Material: Steel, anodized aluminum, plastic
Molift Quattro 3
Rail length: 3000 mm
Width: 3160 mm
Depth: 3160 mm
Unit weight: 111 kg
Molift Quattro 4
Rail length: 4000 mm
Width: 4160 mm
Depth: 4160 mm
Unit weight: 132 kg
Care Instructions
Clean the product with a solvent-free cleaning agent with a pH level between 5–9, or with a 70% disinfectant solution
Safety
Maximum lifting capacity: 300 kg
Warranty
2 years
Expected Lifetime: 10 years
Compliance
ARTG Number: 360015
Australian Standards: 10535:2006
