Product Overview
This travel hoist is ideal for home use and travel, fitting into a car for convenient transportation and storage. When folded, it can even fit into a small hatchback car, offering exceptional versatility. Featuring a lifting range of 27 – 168 cm (10.6″ – 66.1″), the Smart 150 offers an impressive maximum lifting height while also providing a low enough position for lifting from the floor.
Its standard 4-point sling bar ensures a comfortable lifting position for users, offering ample space around the head area to prevent any risk of contact with the sling bar or swinging side-to-side. This design promotes a natural, correct seating position for users transitioning between lying and sitting. With its unique design, excellent center of balance, and small footprint, the Smart 150 is highly maneuverable, even in tight spaces.
Key Features
- Portable Convenience: Foldable, portable, and lightweight patient lifter for easy transportation.
- Easy Folding: Folds and unfolds easily for convenient storage and setup.
- Built-in Maintenance Reminder: Built-in software calculates when the lifter requires servicing, ensuring optimal performance.
- Floor Accessibility: Lifts easily from the floor for versatile use.
- Dual Lowering Options: Electric and manual lowering functions for added flexibility.
- Modular Design: Can be divided into two sections for easy transport and storage.

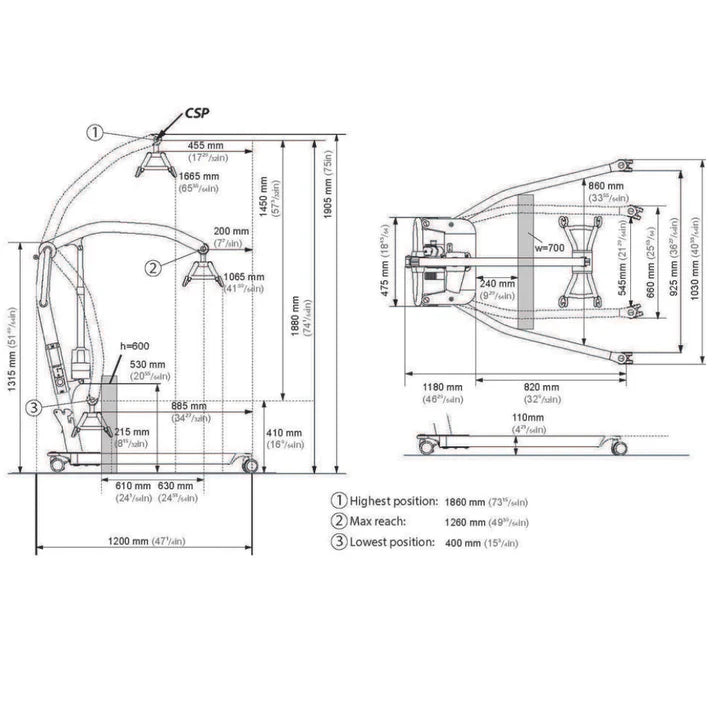

Specifications
Dimensions
- Length: 1200 mm
- Leg height: 110 mm
- Width chassis, legs open inner: 925 mm
- Width chassis, outer: 660 mm
- Product weight: 26 kg
- Material: Aluminium, steel
Technical Specifications
- Hoisting height min: 210 mm
- Hoisting height max: 1665 mm
- Hoisting interval: 1410 mm
- Hoisting speed 75 kg : 60 mm/sec
- Rated performance: 40 hoists at: 75 kg and 500 mm
- Battery: NiMH 14,4 V-2,6 Ah
- Battery charge time: 3 hours
- Service software: Molift Service Tool
Care Instructions
- Use pH-neutral cleaning agents. If disinfection is required, use isopropyl alcohol. Do not use abrasive or corrosive substances for cleaning
Safety
- Maximum weight capacity: 150 kg
- Emergency stop
Warranty
- Lifter: 2 years
- Hand control and batteries: 6 months
Compliance
- ARTG Number: 360016
- Australian Standards: 10535:2011
